High Efficient Waste Cooking Oil Purifier (COP Series)

Basic Info

Model NO.	COP
Moisture Content	Less Than 50 Ppm
Impurity Size	Less Than 1 Micro
Transport Package	Wooden Case
Specification	CE/ISO
Trademark	TOP
Origin	China
HS Code	8421299090
Production Capacity	200 Sets/Month

Product Description

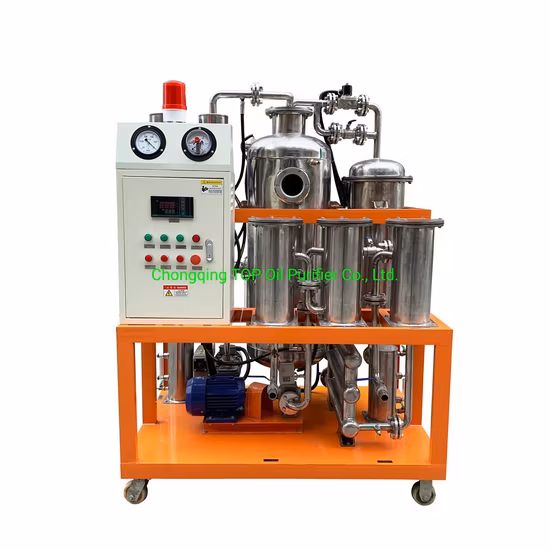

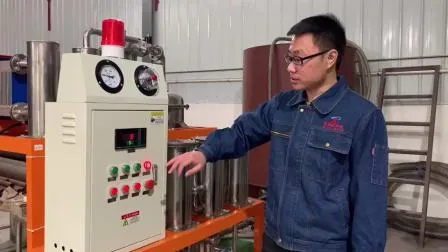

High Efficient Waste Cooking Oil Purifier (COP Series)

COP series oil treatment plant, with variable flow capacity, is designed for the most economical
conditioning and drying of cooking oil/edible oil/vegetable oil.
It removes impurity, gases, odor, water, acid and alcohol etc from oil effectively by degassing,
dehydration and filtering.



The primary filter, which is made of the stainless steel, is anti-rust and anti-corrupt. It mainly removes the residual impurities which escape from the press filter, making sure
the treated oil won't have many impurities when it goes into the water separator and vacuum separator.
The water separator, which is equipped with a special filter, mainly removes the mass water from the oil.
Usually the waste cooking oil contains much water and it needs to be removed from the oil. After the water separator, the oil just contains the tiny water and soluble water.

After the process of the water separator, the oil will go into the vacuum separator which adopts three-dimensional duplex evaporation and film evaporation. For protecting the oil nature, it is better that the oil temperature is lower than 80°c. Because our machine works under the vacuum and low pressure condition, so the oil doesn't need to be heated to 100 °c and usually it just need to be heated to 45 °c. Then the tiny water, soluble water, acid, alcohol, other volatility liquid and so on can be removed completely and effectively.
For the fine filter part, which is equipped with the stainless steel filter, the purification hole is less than 1 micron, which can make sure the filtered oil is completely clear without any impurities.
It adopts back flushing system, which can clear impurities automatically.

Special features
1. The plant is delivered ready for operation.
2. Continuously cleaning the oil.
3. On-line water content measuring device (optional)
4. All oil treatment plants, type COP are equipped with an automatic Anti-Foam Control System.
5. The plant is equipped with built-in control and safety devices, which provides for a maximum operating security.
6. Minimised power consumption through optimised degassing (excellent efficiency factor).
7. Standardized filter housing for 1 micron , 5 micron, 20 micron and 80 micron filter cartridges.
8. Automatic supervision of the degree of contamination of the fine filter cartridges
9. Filters are stainless steel with backwashing system
10. All plants are PLC controlled (optional)



Technical data

Parameters	Unit	COP-10	COP-20	COP-30	COP-50	COP-100	COP-150	COP-200	COP-300
Flow Rate	L/min	10	20	30	50	100	150	200	300
Working Vacuum	MPa	-0.06 ~ -0.095
Working Pressure	MPa	≤0.4
Temperature Range	ºC	0 ~ 100
Power supply		380V,50Hz, 3 phase (or as customized)
Working noise	dB(A)	≤75	≤75	≤75	≤78	≤78	≤78	≤80	≤82
Heating power	KW	36	40	45	72	80	90	120	135
Total power	KW	38	42	47	75	87	101	135	147
Inlet/outlet	mm	25	25	25	32	42	50	50	60
Net weight	Kg	450	550	600	750	850	1000	1200	1500
Overall dimensions	mm	1500×1000×1200	1500×1050×1600	1500×1050×1650	1600×1150×1700	1750×1250×1800	1900×1600×1950	1900×1700×2000	2100×1700×2100

Item	Guarantee indexes
Moisture content	≤50 PPM
Demulsification value	New oil≤15min,running oil≤30min
Impurity size	≤1 micron (no free carbon)
Gas content	≤0.1%
Clean degree	≤4 Grade (NAS1638)
